Quick Start Guide

• 1. Introduction
• 2. Installing eXist
• 3. Getting Started
• 4. Accessing the Server
• 5. Using the Admin Database Interface
• 6. Using the Java Admin Client
• 7. Shutting Down the Database
• 8. Starting eXist as a service
• 9. If Something Goes Wrong ...
• 10. Running Executable Files

1. Introduction

This guide offers the quickest way to install and begin using the eXist XML Database system. Although this guide assumes users have a basic knowledge of XQuery and XML, eXist can be used as a tool for learning these technologies. However, it is recommended that users consult other reference and tutorial resources. Some useful resources are suggested at the end of this document.

2. Installing eXist

To begin, download the latest standard distribution of eXist. This package is recommended for new eXist users and includes a graphical installer that guides you through the installation process. This standard distribution comes as an executable .jar (Java Archive) file, which automatically determines the correct system settings (i.e. paths and environment variables) for eXist. On Windows and Linux Operating Systems, the installer can also create desktop shortcuts.

Once the download has completed, start the eXist installation by doing ONE of the following:

This will launch the installer. Simply follow the steps to complete the installation process.

3. Getting Started

After the installation has completed, you should now be ready to launch eXist. If the installer has created shortcuts, simply double-click on the eXist Database Startup icon or select this item from the start menu located on the desktop.

To start eXist manually, do the following:

If these scripts do not launch eXist, you can load it directly with the bootstrap loader by entering the following into the console:

While eXist starts up, log output might appear in the console. If eXist was launched properly, you should see the following:

4. Accessing the Server

In the default setup, eXist is running inside a web application served by a pre-configured Jetty webserver. All interfaces are provided as servlets. To test that the server is running, enter the following URL in a web browser:

http://localhost:8080/exist/index.xml

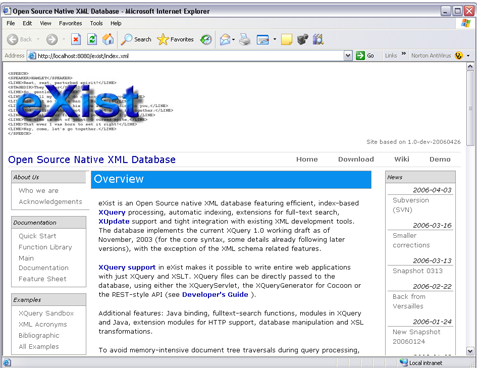

You should now see the following web page:

Note that this is not the eXist site homepage, but a local copy of the website included with the eXist installation. These local files include eXist documentation, function libraries, resources, and XQuery examples.

5. Using the Admin Database Interface

To begin using the database system, you must first create document collections and import files to eXist. To help you in learning these and other basic database operations, a number of simple XQuery web applications have been included with the eXist distribution. These applications are designed to allow users to experiment and query the eXist database using sample XML documents.

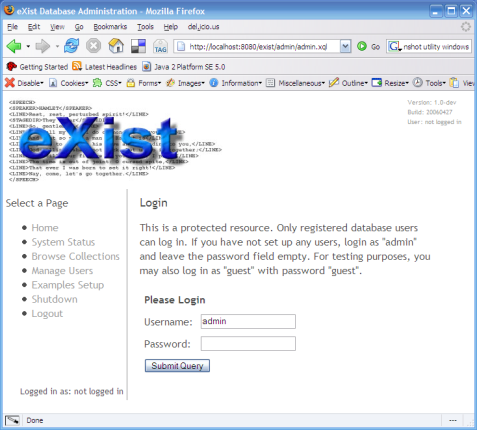

To start using these example applications, you must log in to the eXist database administration page. To log in, go to the Administration » Admin link (http://localhost:8080/exist/admin/admin.xql) located on the sidebar menu on the local eXist homepage (http://localhost:8080/exist/) You should now see the login screen as shown on the right. Enter the username "admin" and leave the password field empty unless you supplied an admin password on installation or changed the admin password by other means, in which case your chosen password is needed.

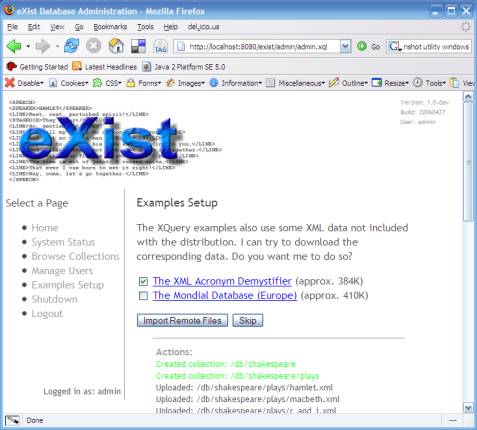

Once you have logged in, select Examples Setup from the menu on the left. Click on the "Import Example Data" button to start the setup and begin downloading example data from the Internet. This will produce a screen asking if you would also like to download additional data from the web. Since these files are not required for this test, we can select the "Skip" button. Once you are more familiar with eXist, you may want to go back and add the "The XML Acronym Demystifier" and "Mondial Database" data to try other database queries.

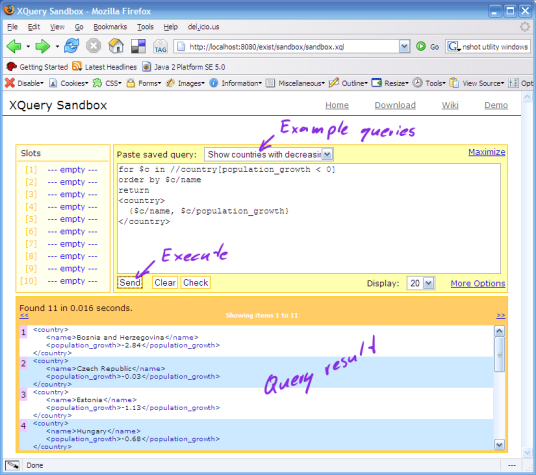

After the example data has been uploaded, you will be able to query the sample collections on the "Examples Page." Here you will find a number of small web applications that employ eXist and XQuery. The simplest of these applications is the "XQuery Sandbox" shown on the right (http://localhost:8080/exist/sandbox/) which allows users to submit example queries to the database. This program provides the easiest way for users to start experimenting with eXist and XQuery.

6. Using the Java Admin Client

In addition to the web-based eXist interface, eXist provides a Java-based admin client. This application enables users to perform more complex administrative tasks, such as user management, security settings and backup/restore.

This GUI client can be used either as a graphical interface, or through a DOS or Unix command-line - which uses parameter options for specific tasks. If no action is specified on the command-line, the client will enter "interactive mode" and display a graphical login interface. Additional information on using the admin client from the command line, is available in the client documentation.

You can launch the client by doing ONE of the following:

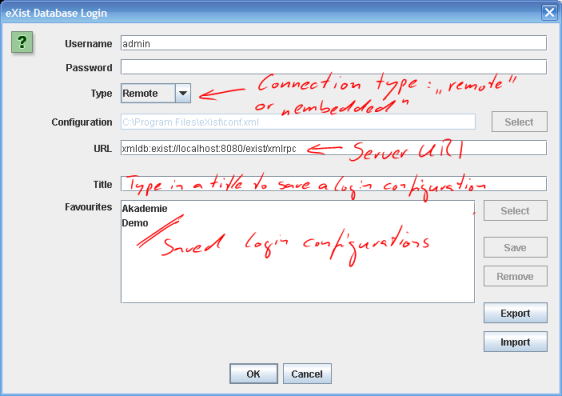

A screenshot of the client login interface is shown on the right. At the login window, you can provide your username and password, and select a server. The client can either connect to a Remote server, or launch an Embedded database (i.e. embedded in an application), which runs in the same process as the client. This option is useful for backup/restore or mass-uploads of data (writing to an embedded instance avoids the network overhead). If you connect to a remote database, the URL field specifies the location of the db server. The URI scheme used here is standardized, and for standard database setups, use the displayed default URI (xmldb:exist://localhost:8080/exist/xmlrpc). More in-depth information on server URIs and their function can be found in the deployment guide. To log in to eXist's default administrator account, use the "admin" username. if you have not yet changed the admin password (e.g. your first log in), leave the password field empty. After clicking "OK", the main client window will open (see the next screenshot).

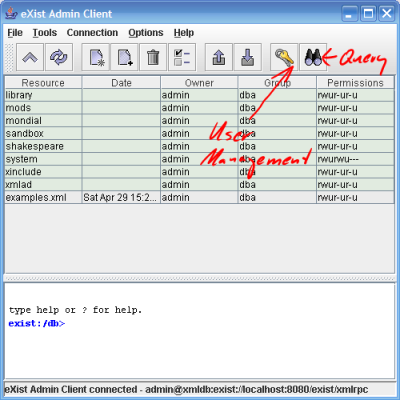

Once you have logged in, a client window will open. This window is split into two panels, as well as a top menu and toolbar. The top panel lists the database collections; the bottom panel is the "shell" and has a command prompt. This "shell" allows you to manually enter database commands. Most commands, however, can be entered using the menu. All of the menu and toolbar items have mouseover annotations that explain their functions.

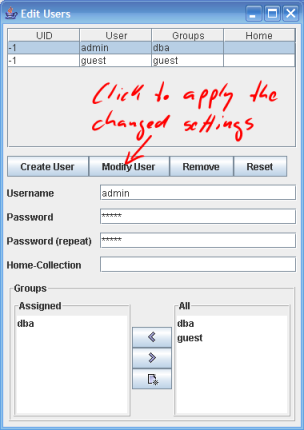

eXist can be used for applications intended for online web publications, or as an embedded library. If you plan to use eXist for an online application, you expose it to potential exploitation, and so it is strongly advised that you first change the admin password. To do this, follow these steps: Open the "Edit User" window by selecting the "Manage Users" icon (image of a pair of keys) in the toolbar At the top, select the "admin" user in the table of users Type in your password into the corresponding fields Click the "Modify User" button to apply the changes

7. Shutting Down the Database

It is recommended you properly shut down the database before killing the server process. By not doing this, data files may become corrupted. There are several ways to trigger a shutdown:

8. Starting eXist as a service

Instead of manually running the eXist server in a shell window, you may prefer to run it as a background service which is automatically launched during system startup. eXist comes with pre-configured scripts that use Tanuki Software's Java Service Wrapper to handle the setup procedure. The required scripts are contained in the directory tools/wrapper. On Windows, you can simply choose the option to Install eXist as Service from the eXist menu created in the start menu. You can also call tools/wrapper/bin/install.bat instead. This will install eXist and Jetty as a Windows service.

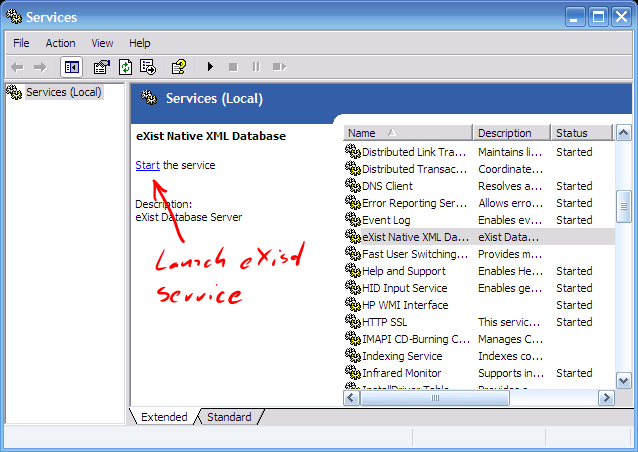

After executing the install.bat script, you should find eXist listed in the list of services currently registered with Windows:

Once the service is registered, you can launch it via the service manager as shown in the screenshot or from the command line:

For Linux, all of the start/shutdown scripts can be found in tools/wrapper/bin/exist.sh. You can create a link to this file from the init.d directory of your distribution (where all of the start/shutdown scripts reside). Normally, the directory will be /etc/init.d. For example:

You can then add the service to the correct system runlevel. Check with your Linux distribution for instructions.

9. If Something Goes Wrong ...

If you experience any problems while installing eXist, your first step should be to check the log files to get additional information about the source of the problem. eXist uses the log4j-package to write output logs to files. By default, this output is written to the directory webapp/WEB-INF/logs. Or, if you are running eXist as a Windows or Unix service, check the directory tools/wrapper/logs. The main log files for eXist itself are exist.log and xmldb.log. The other log files show output from Cocoon.

If you encounter a problem you are unable to fix, check the mailing list archives for postings on similar errors. If you cannot find a posting, or you are still unsure about the problem, you might consider posting your problem on the list for feedback. If you do decide to post a message, please include any exception message you find - both in the logs and the console, and ensure you post the server-side, and not the client-side messages (client-side messages such as browser errors are not useful for troubleshooting).

10. Running Executable Files

Included in the distribution are a number of useful .sh (Unix Shell) and .bat (DOS batch) programs located in the bin directory. If you installed the source distribution or used the installer, you can find this directory in the root directory of the distribution. If you installed the exist.war file (Web Application Archive), you will find the bin directory in the location the .war file was unpacked.

These shell and batch scripts are simply wrappers (interfaces between the executable Java programs) around the bootstrap loader contained in the jar file start.jar.

If you find the programs do not launch, you can also manually launch these files on the command-line, and specify which application you would like to start.

To manually launch these scripts:
